RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Brand Name : Aquatrin

Model Number : RCGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Bottle type : PET, Glass, Plastic

Diameter : 300ml-2000ml

Filling range : 200ML,330ML,500ML,600ML,1000ML,1500ML,2000ML

Filling speed : 5000bph based on 500ml

Product name : Hot drink juice filling machine

Function : Bottle Washing Filling Capping

Contact Now

Product's Scope:
 Blowing molding system, air compressor system, filling system, purfication system, caps sterilization system, sterile air system,bottle tilting chain and cooling tunnel, filled bottle conveying system, labelling machine, carton/film packing machine,palletizer, electric control, engineering design and construction.

Product Paramenters

Model	RCGF14-12-5
Amoust of working position	Rinsing 14, filling 12, capping 5
Production Speed	5000 bottles per hour(500ml)
Pressure of air source	0.7Mpa
Air consumption	0.25M3/min
Pressure of rinse water	0.2~0.25Mpa
Consumption of rinsing water	1.5 t/hour
Main motor power	1.5kw
Total power	2.42kw
2360Dimension	220017702700(LWH)
Weight	2600kg

Auxiliary Equipment

1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck.
3). Using imported special efficient spray nozzle.

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Filling part

1). The washing bottle, filling, sealing are connecting with bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.

Capping part

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Pre-process system.

1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing tank 3 UHT sterilizer + homogenizer machine + Buffer tank 4 Hot water system + Hot water tank 5 CIP cleaning system.

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Bottle Inverter Chain

1/Use juice own high temperature to kill the bacterial inside cap. 2/Use juice own high temperature to improve sealing of bottle to extend warranty time. 3/Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

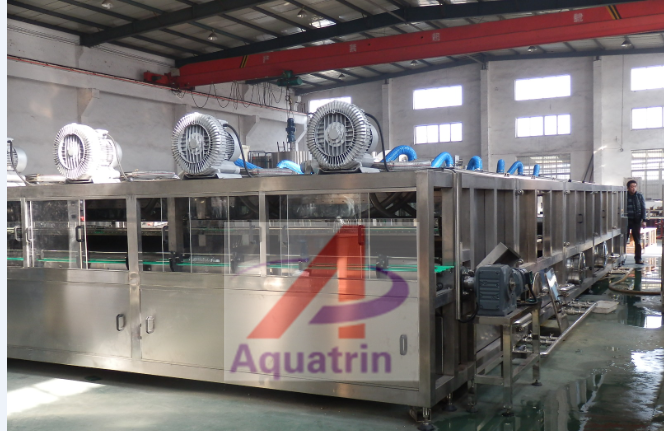

Shower Cooling Machine.

1/Mainly for cooling and sterilization 2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation 3/Nozzles are manufactured using U.S. technology and spray water evenly 4/Conveyor belt adopts Rexnor technology, flat surface with small wear 5/Smooth and reliable operation with low energy consumption

We suplly Free Factory Layout design

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

We suplly Free Bottle Shape design

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Water treatment system

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Labeling Machine

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

Laser date printer

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink

PE film wrapping package machine

RCGF AISI316L Automatic Juce Filling Machine 0.25M3/ Min For Hot Drink
